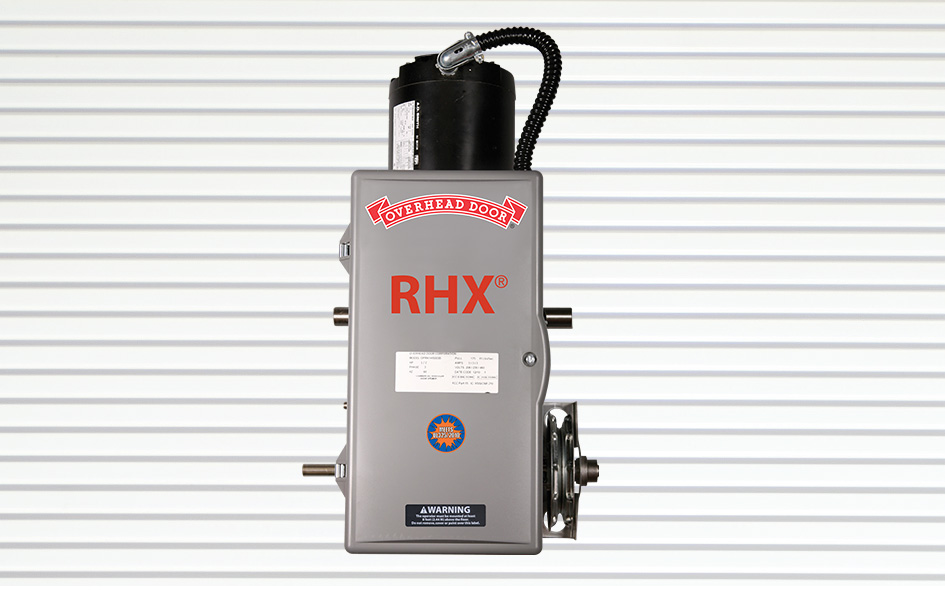

RHX® Commercial Door Operator
Signature® Carriage
Heavy Duty
Our commercial operators are manufactured to meet the performance requirements of our commercial and industrial doors.
DOORDREAMER™: VIEW THIS DOOR ON YOUR HOME
Overview
The RSX® Egress Operators are UL325 listed. These standard duty operators feature fully integrated controls to release egress grilles to the fully open position during emergency events.
Commercial Garage Door Openers
Overhead Door® Commercial door operators, provide an integrated door system that comes with our guarantee for reliable performance when you need it most — every day. Built with convenience in mind, our automatic door operators also make it safer and easier to perform daily job duties so you can improve efficiency and close the door on your competition.
Overhead Door® automatic door operators are manufactured to meet the performance requirements of our commercial and industrial doors, offering precise control of your door system for years of trouble-free operation. To improve safety and enhance the life of your door and motor, the industry’s guidelines for quality assurance recommend a single manufacturer for both door and operator. We are the only manufacturer that offers a full line of commercial and industrial doors and operators specifically designed for integral applications. We offer the industry’s broadest line of electric, automatic door operators to suit new construction and retrofit applications, as well as unusual or special requirements. Overhead Door® commercial operators are UL 325 2010 compliant.
Our Commercial Operator classification specifications are listed out below:
- Heavy Duty Operators: Our RHX operators are heavy duty and operate up to 60 cycles per hour under a large constant load.
- Standard Duty Operators: Our RSX operators are standard duty and operate up to 60 cycles per hour during peak usage periods only.
- Medium Duty Operators: Our RMZ operators are medium duty and operate at 15 cycles per hour.
- Light Duty Operators: Our CDX operators are light duty and operate at 4 cycles per hour.
Features
Product Specifications

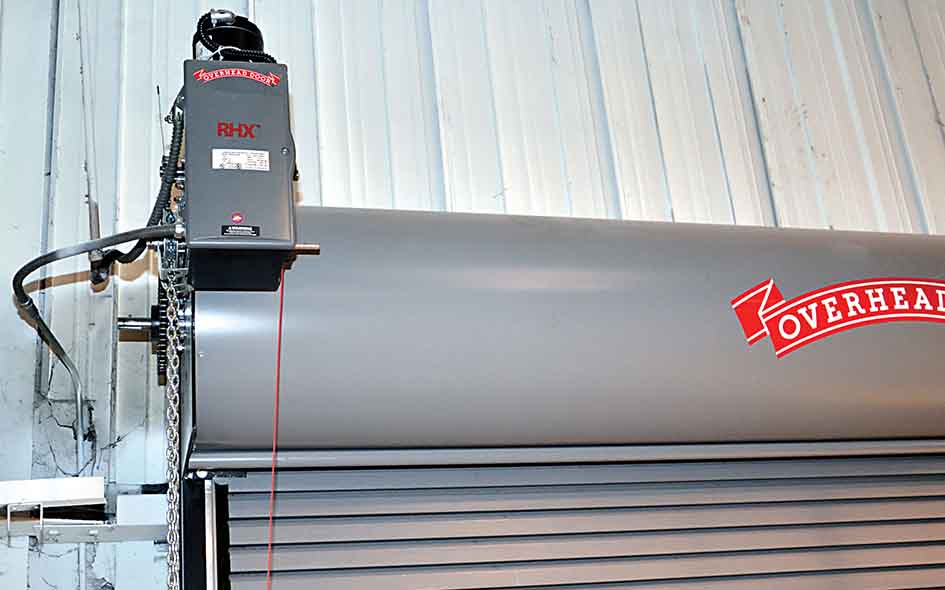

| Mounting | A wide variety of mounting options are available to fit any application including: Sectional doors: Standard trolley, side mount trolley, and dual trolley applications. Side mount and center mount chain couple or direct couple to the door shaft with hoist. Hoist models are left or right-hand adjustable in the field. All models come standard with the DC brake system. Rolling steel doors: With hoist, front of hood, top of hood, bench mount and wall mount applications. Hoist models are left or right-hand adjustable in the field. All models come standard with the DC brake system. |
| Warranty | RHX® operator features a 2-year limited warranty. See installation manual for complete limitations and details. |
| Motor | Continuous duty motor available in 1/2, 3/4, 1 and 3 horsepower, single or three-phase. Totally enclosed non-ventilated (TENV) construction and totally enclosed fan cooled (TEFC) construction units are available as options. 3 horsepower models come standard with (TEFC) construction. |
| On board radio receiver | This standard feature can add radio functionality to every job with no additional cost for the receiver. Stores up to 250 CodeDodger® transmitters including the commercial dual frequency cycling versions. |
| Drive reduction | Primary reduction is worm gear running in oil bath. Secondary reduction is by chain and sprocket. |
| Direct coupling | Provides fast, easy installation with fewer parts and better structural support. Prevents chain slacking. Available on sectional side mount jackshaft and hoist units. |
| Mechanical brake system | 24V DC disc brake. Fewer mechanical parts for improved reliability. |
| Clutch (standard with trolley; optional with hoist) | Adjustable disc-type helps protect door and operator from major damage should the door meet an obstruction. (Included in 14 and 26 RPM direct couple mounting kits) |
| Cycle counter | LCD (Liquid Crystal Display) clearly indicates the exact number of cycles logged for easy maintenance support. |
| Trolley rail assembly | High strength 2 inch rolled angle for added strength and durability. |
| Voltage freedom with Voltamatic® | One unit for single phase voltages (115/208/230V), one unit for three phase voltages (208/230/460V) and one unit for three phase 575V. |
| Extra door system durability with Progressive Braking* | DC brake system brings the door to a soft stop for less wear and tear on the system. * Patents # 6,737,823 and 6,388,412 |
Options
| Models | RHX® Trolley – Sectional Door- standard, side mount or dual trolley RHX® Hoist – Sectional Door– side mount, center mount, chain or direct couple RHX® Hoist – Rolling Steel- front of hood, top of hood, bench mount or wall mount All RHX® Heavy Duty models available in:
RHX® 3 HP:
|
Direct coupling (optional on sectional doors only) | Provides fast, easy installation and prevents chain slacking. Available as on optional kit for sectional side/center mount and hoist units. For sectional, options include:
|
Adjustable shaft | Output shaft of the optional direct coupling kits can be moved from one side to the other, providing flexible installation options. |
| NEMA 4/4X operators | Available for wet, dusty and corrosive environments. |
| New CodeDodger® commercial dual frequency cycling transmitters | Available in 1, 2, 3, 4-button and Open/Close/Stop versions. Automatically operates at both 315 and 390 Mhz every time a button is pressed. |
| Motors | The following motors are available when specified:
|
Documents
Explore the full specifications of our products. Our technical data sheets provide comprehensive information on dimensions, assembly methods, and construction requirements. Make well-informed decisions by planning your investment down to the last detail.
