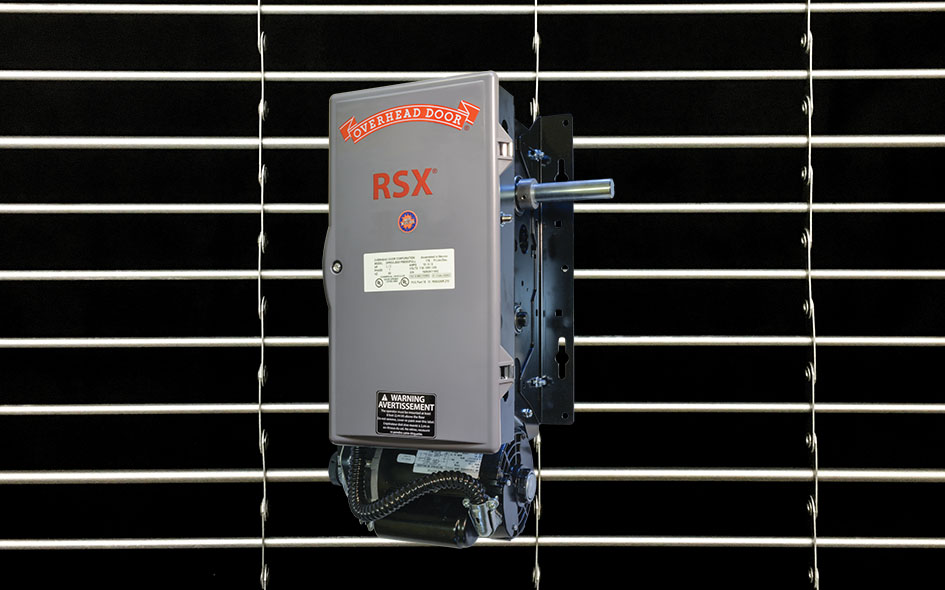

RSX® Egress Operator
Signature® Carriage
Model Standard Duty
Our commercial operators are manufactured to meet the performance requirements of our commercial and industrial doors.
DOORDREAMER™: VIEW THIS DOOR ON YOUR HOME
Overview
The RSX® Egress Operators are UL325 listed. These standard duty operators feature fully integrated controls to release egress grilles to the fully open position during emergency events.
Commercial Garage Door Openers
Overhead Door® Commercial door operators, provide an integrated door system that comes with our guarantee for reliable performance when you need it most — every day. Built with convenience in mind, our automatic door operators also make it safer and easier to perform daily job duties so you can improve efficiency and close the door on your competition.
Overhead Door® automatic door operators are manufactured to meet the performance requirements of our commercial and industrial doors, offering precise control of your door system for years of trouble-free operation. To improve safety and enhance the life of your door and motor, the industry’s guidelines for quality assurance recommend a single manufacturer for both door and operator. We are the only manufacturer that offers a full line of commercial and industrial doors and operators specifically designed for integral applications. We offer the industry’s broadest line of electric, automatic door operators to suit new construction and retrofit applications, as well as unusual or special requirements. Overhead Door® commercial operators are UL 325 2010 compliant.
Our Commercial Operator classification specifications are listed out below:
- Heavy Duty Operators: Our RHX operators are heavy duty and operate up to 60 cycles per hour under a large constant load.
- Standard Duty Operators: Our RSX operators are standard duty and operate up to 60 cycles per hour during peak usage periods only.
- Medium Duty Operators: Our RMZ operators are medium duty and operate at 15 cycles per hour.
- Light Duty Operators: Our CDX operators are light duty and operate at 4 cycles per hour.
Features
Product Specifictions
| Mounting | Secure mounting options are available to fit: Front of hood, top of hood, wall mount, bench mount, or front of hood horizontal |
| Motor | Open drip-proof motor available in ½, and 1 horsepower, single or three-phase. |
| Progressive Breaking | Advanced DC break system bring the door to a smooth stop for less wear and tear |
| Advanced radio receiver system with auto seek frequency range | Quickly and easily learns up to 250 CodeDodger® transmitters. This system will automatically cycle between 315 and 390 frequencies. Can add and delete transmitters from the menu and easily identify which transmitters are operating the door. |
| Easy limit setting with LimitLock® | An electro/mechanical limit sensor that makes it easy to set and maintain limits. |
| Egress board | Alarm system and egress push-button inputs to release grille to fully open position |
| Easy installation and trouble-shooting with 16 character LCD display | Intelligent menu structure and expanded self-diagnostics including cycle counter functionality |
| Adjustable timed close feature | Standard feature on the main logic board can close door automatically. Timer can be set from two seconds to five minutes through the LCD display. |
| Voltage freedom with Voltamatic® | One unit for single phase voltages (115/208/230V), one unit for three phase voltages (208/230/460V) and one unit for three phase 575V. |
| Governor | Controls rate of door ascent. |
| Auto-tensioning SuperBelt® | Automatically adjusts itself to the correct tension. |
| UL325 listed | Requires the addition of monitored external entrapment devices prior to the operator working in momentary contact in the close direction. |
Advantages
| Floor level auto-reset | No manual intervention is required to reset after egress test activation. Door may be motor operated normally upon reset of the test key switch to the normal position. Limits stay synchronized with the door |
| Egress Module | Pre-installed egress board controls egress release functions after receipt of initiating device input or power |
| Alarm system integration | Alarm system input available for remote activation of egress grille opening. Includes an alarm output for notification to a remote alarm system. |
| Simplified installation | The release clutch and governor that control the door ascent are inside the operator allowing for an installation that is similar to a standard service door operator |
| Included accessories | Included accessories |
| Drive reduction | Primary reduction is SuperBelt®, an auto tension poly-V flex belt that does not require adjustment. Secondary reduction is by chain and sprocket. |
| Timed Close | Doors can be set to automatically close after a two second to five minute delay. |
| Mechanical brake system | 24V DC Disc Brake. Fewer mechanical parts for improved reliability. |
| Reduction Clutch | Adjustable disc-type helps protect door and operator from major damage should the door meet an obstruction. |
| Release Clutch | Disconnects operator drive train allowing grille to travel to fully open position upon receipt of alarm signal, egress push-button operation, or power loss. |
| Cycle Counter | LCD (liquid crystal display) clearly indicates the exact number of cycles logged for easy preventative maintenance and support. |
| On-board radio receiver | Can add radio functionality to every job with no additional cost for the receiver. Stores up to 250 CodeDodger® transmitters with dual frequency cycling. |
| Limited warranty | RSX® Fire Door operator features a 2-year or 20,000 cycle limited warranty. See installation manual for complete limitations and details. |
