Carriage House Style Garage Doors

Courtyard Collection®

Models 7520 & 7560

The beauty of wood, the durability of steel. Insulated steel construction, fashioned to resemble the elegant wood designs of carriage house doors.

CALL (608) 271-4288
GET A QUOTE

DOORDREAMER™: VIEW THIS DOOR ON YOUR HOME

Overview

Our Courtyard Collection® Models 7520 and 7560 garage doors are made with an insulated steel construction and fashioned to resemble the elegant wood designs of traditional carriage house doors. They have the beauty of wood, the durability of steel and a classic design to enhance the architectural beauty of your home. Choose from a broad selection of windows and hardware options to further customize the look of your garage door.

A simple black and white line drawing of a bicycle, shown from the side. The illustration clearly displays the wheels, frame, handlebars, seat, pedals, and chain.

Wide array of
stained and painted finishes

A person sits cross-legged on the floor meditating, with hands resting on their knees. A large clock is behind them, symbolizing mindfulness and taking time to meditate. The background is blank.

Wood-grain
texture

A stick figure sitting at a desk raises its arms in frustration while looking at a computer monitor, with a slanted desk lamp overhead.

Customize with windows and hardware

A person in a wheelchair is depicted ascending a flight of stairs using a stair lift, illustrating accessibility solutions for individuals with mobility impairments.

Superior thermal performance

A black cat sits on a windowsill, looking outside. Sunlight streams through the window, casting a warm glow on the cat’s fur and the surrounding area. Lush green trees can be seen outside the window.

Superior
durability

A silhouette of a person with their head resting on their hand, appearing thoughtful or contemplative.

Wind load options
upon request

Panel designs

A double wide garage door will look different than the single wide shown below. Please consult your local distributor to get an exact picture of the door for your desired sized opening.

Models 7520/7560

Black and white line drawing of a wooden gate with horizontal planks, diagonal cross-braces, and a curved top rail. The structure appears sturdy and symmetrical.

A Shaped Overlay A ((375T/165T))

Black-and-white line drawing of a double garage door with four rectangular panels, each featuring a pattern of diagonal and vertical lines forming X and rectangle shapes.

X Shaped Overlays X ((377T/167T))

A simple envelope icon in black, shown with a rectangular outline and a flap outlined as an X, representing mail or email.

X Shaped Overlay X ((377T/167T))

Black and white line drawing of a double window from the Courtyard Collection, featuring eight rectangular panes on each side and an arched design above the panes within the window frame.

Horizontal Overlays H1 ((371T/161T))

A diagram of a four-pane window from the Courtyard Collection, featuring a slightly arched line at the top of the upper two panes as a design element. The window is set against a blue-gray background.

Horizontal Overlays H2 ((371M/161M))

A white rectangular grid with multiple vertical and horizontal black lines, forming variously sized rectangles, is showcased on a muted blue-green background from the Courtyard Collection.

Vertical Overlay C5 ((373T/163T))

Line drawing of a double window from the Courtyard Collection, featuring multiple rectangular panes and curved lines at the top, set against a plain blue-gray background.

Vertical Overlay C5 ((373T/163T))

A simple white window from the Courtyard Collection, with eight rectangular panes divided by a vertical and horizontal grid, set against a muted blue-gray background.

Horizontal Overlays H1 ((371T/161T))

Simple black and white icon of a mountain with a sun or moon above it, resembling a classic image placeholder symbol.

A Shaped Overlays A ((375T/165T))

A black square with lines in it.

A Shaped Overlays A2 ((375B/165B))

A white window with four rectangular panes, set in a dark teal wall. The two lower panes each have a diagonal line, creating a geometric pattern.

A Shaped Overlay A2 ((375B/165B))

The image is completely black, showing no visible objects, shapes, or colors.

Horizontal Overlays H ((371A/161A))

A 2x2 grid of four rectangles, each containing a smaller, centered rectangle, all outlined in black on a blue-gray background.

Horizontal Overlay H2 ((371M/161M))

Line drawing of a rectangular shelving unit with two sections, each containing four shelves. The top shelves have a slightly arched design. The unit is viewed from the front.

Horizontal Overlays H ((371A/161A))

Model 7560

A white rectangular grid with five columns and four rows is centered on a blue-green background, evoking the minimal elegance of the Courtyard Collection. Black lines neatly separate the cells within the grid.

Vertical Overlay C2 ((162Z))

Black line drawing of a window with two panels, each featuring a diamond shape in the lower half and divided into multiple rectangular sections by horizontal and vertical lines.

Vertical Overlay D ((168A))

A pair of rectangular double doors with a grid pattern formed by horizontal and vertical lines; each door has an arched detail at the top. The background is solid grayish blue.

Horizontal & Vertical Overlay E3 ((164A))

A geometric window design with two panes, each featuring a large diamond shape in the lower half and rectangular sections above, outlined with thin black lines on a gray background.

Vertical Overlay D ((168B))

A line drawing of a rectangular window with two main panes, each topped with a row of four small rectangular panes, framed by a simple border.

Custom** ((169))

A line drawing of a rectangular window with two main panes, each topped with a row of four small rectangular panes, framed by a simple border.

Custom** ((169))

A simple, black-outlined bookshelf with three shelves, each holding several evenly spaced books, set against a solid blue-gray background.

Horizontal & Vertical Overlays E3 ((164A))

A simple black line drawing of two large rectangular shelves side by side, each with multiple compartments and diagonal supports forming X shapes in the lower sections, on a blue-gray background.

Diagonal Overlay X2 ((167B))

A black line drawing of a rectangular window with two panels, each panel divided into eight smaller panes by a grid of vertical and horizontal lines. The top panes have a slightly curved upper edge.

Vertical Overlays C2 ((162ZT))

A geometric design featuring a black outlined box with horizontal and vertical lines, and a large downward-pointing triangle in the center, all on a blue-gray background.

V Shaped Overlay V2 ((166E))

A simple line drawing of a symmetrical window divided into four sections, each with geometric lines and shapes, including curved and diagonal lines in the top and bottom sections.

V Shaped Overlays V2 ((166B))

A line drawing of a rectangular window with two sections, each divided into multiple smaller panes by horizontal and vertical muntins. The upper panes form a subtle arch pattern.

Horizontal & Vertical Overlay E2 ((162A))

A simple line drawing of a rectangular window divided into two sections, each with three panes. Diagonal lines run from the bottom corners to the center, forming a triangular pattern on each side.

V Shaped Overlay V ((166T))

A diagram of a window with 8 panes, arranged in 2 columns and 4 rows, on a solid teal background. Each pane is separated by thin black lines.

Horizontal Overlays H3 ((161B))

A geometric line drawing of a square divided into two equal vertical rectangles, each with a grid and diagonal lines forming triangles in the lower half of both rectangles, all against a muted blue-gray background.

V Shaped Overlay V2 ((166B))

Line drawing of a double garage door with windows at the top, decorative crossbars, and diagonal braces forming a V shape on each side. The design is symmetrical and simple.

V Shaped Overlay V ((166T))

A rectangular grid with unevenly-sized rows and columns is displayed on a blue-gray background. Some grid lines are thicker, creating a varied pattern within the grid.

Vertical Overlay C4 ((162E))

A black line drawing of a rectangular window with two large sections, each divided into smaller panes by a grid pattern; the top panes are slightly curved. The background is solid slate blue.

Vertical Overlays C4 ((162E))

A simple black outline drawing of two adjacent rectangular shelves, each divided into nine smaller rectangles, with large X-shapes crossing through the lower four sections of both shelves.

Vertical Overlays C4 ((162E))

A black and white line drawing of two adjacent rectangular bookshelves, each divided into multiple shelves with some shelves featuring a curved top design. The background is a solid bluish-gray color.

Horizontal Overlays H3 ((161B))

A white rectangular grid with five rows and six columns is shown on a dark teal background. The grid lines are black and some lines are doubled, creating smaller boxes inside the larger grid.

Horizontal & Vertical Overlay E2 ((162A))

Colors

The Courtyard Collection® garage doors are available in nine standard colors or can be painted to match your home’s décor. Color selections may not be available for some models. Door overlays and window trim are available in the colors shown or can be painted to match your home’s décor (additional charges may apply.) The 7560 (160) series garage doors can be painted solid or two-tone. The 7520 (370) series in only available with white trim.

*Garage door overlays and trim are designed so 3rd parties can paint them.

Close-up of a dark, textured surface with a subtle diagonal woven pattern, resembling black fabric or textile material.

Black*

Close-up of a brown textured surface with diagonal streaks and subtle variations in shading, resembling wood grain or brushed metal.

Terra Bronze*

A plain, light brown square with a subtle textured pattern resembling paper or cardboard.

Sandstone

A small square with a dark green, marbled texture. Subtle, lighter green and faint brownish lines create a natural, stone-like pattern across the surface.

Forest Green*

A plain square with rounded corners, filled with a light beige or cream color.

Almond

Close-up of a light, sandy surface with subtle, wavy lines and soft textures, resembling gentle ripples or patterns in fine sand.

White

Close-up image of dark brown textured fabric or yarn, showing a woven or knitted pattern with fine, horizontal lines and slight variations in shade.

Brown*

A square tile with a smooth, light beige surface and subtle, natural-looking variations in color and faint lines, resembling stone or marble.

Desert Tan

A light gray surface with subtle, wavy lines and a slightly textured appearance.

Gray*

*Only available on Model 7560 (160 series).

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.

Windows & Hardware

Customize the appearance of these garage doors with windows and hardware for even greater curb appeal.

A rectangular white-framed window with two large black glass panes side by side, set against a plain background.

Clear Long

White garage door window panel with eight rectangular glass panes divided by white muntins, arranged in two sets of four panes side by side.

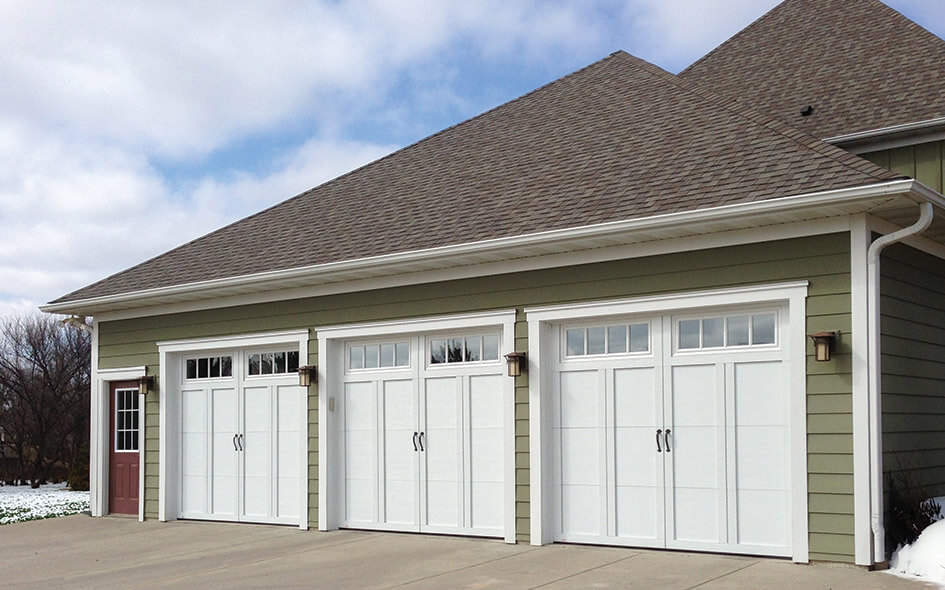

Stockbridge

A white garage door panel with two rows of rectangular windows, each row containing eight window panes with black backgrounds, arranged side by side in a horizontal layout.

Stockton

White garage door panel with two rectangular windows, each featuring an arched grid pattern and multiple glass panes. The background behind the windows is black.

Stockton Arch

Rectangular white garage door window panel with two sections, each featuring six rectangular panes and an arched grid design along the top row of panes, set against a black background.

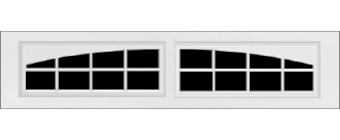

Somerton

White garage door windows with black panes, each window divided into four sections by white muntins. The tops of the panes are arched, creating a curved appearance across both windows.

Wyndbridge

Glass

Two small red toy vehicles, a car and a pickup truck, are positioned side by side on a light surface. Both have visible details like windows and wheels.

Clear

Two red cars positioned close together, viewed from above and slightly to the side, with a blurry and pixelated effect making details indistinct.

Obscure

A heavily blurred image with indistinct shapes and colors, primarily pinkish-red and white, making it difficult to identify any objects or subjects.

Satin

Hardware

Four flat, black metal straps with arrow-shaped ends and two matching handles, all featuring pre-drilled holes for mounting, are arranged on a white background.

Arrow

Five black metal strap hinges with pointed ends and two matching decorative black door pulls, all arranged on a white background.

Aspen

Four flat black metal hinges with decorative, pointed ends and two matching black metal handles with ornate designs, all displayed on a white background.

Barcelona

Four black strap hinges and two matching black handles are arranged on a white background. The hinges are elongated with rounded ends, and the handles have circular bases.

Bean

Four black metal strap hinges and two matching black handles, each with decorative ends resembling pine trees, are arranged on a white background.

Conifer

Four black, decorative metal strap hinges and two matching black door handles with ornate, fleur-de-lis style ends, arranged on a white background.

Fleur de Lis

Four black metal strap hinges and two matching decorative handles arranged on a white background.

Spear

Documents

Explore the full specifications of our products. Our technical data sheets provide comprehensive information on dimensions, assembly methods, and construction requirements. Make well-informed decisions by planning your investment down to the last detail.

Courtyard Collection® - Model 7560 & Model 7520

Specification

courtyard-collection-7560-series-specs

Download PDF
Download DOC

Product Literature

Garage Door Selection Guide

Download PDF

Garage Door Selection Guide

Download PDF

Wind Load Garage Doors Brochure

Download PDF

Warranties

Courtyard-Garage-door-warranty

Download PDF

Residential-Garage-Door-System-Warranty

Download PDF

Construction

Product Specifications

Polyurethane Garage Door InsulationProvides thermal efficiency
Model 7560: U-factor* of .15 (12.76 R-value**):
Model 7520: U-factor* of .20 (9.31 R-value**)
Ball Bearing Rollers
Door Thickness7560 (160) series: 1 3/8″
7520 (370) series: 1″
Overlay Thickness7560 (160) series: 3/4″
7520 (370) series: 3/8″
Wood-grain trimColor matched trim
Color matched trimTrim can be matched to the color of the door to further enhance the look of your home
Wind LoadOur WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes.
Color matched trimTrim can be matched to the color of the door to further enhance the look of your home

*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.

DASMA Thermal Performance

DASMA Thermal Performance Verification Program logo with a blue and white wavy flag icon, and text citing the website www.dasma.com/thermal.
Overhead DoorTM Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.
A black check mark overlaid on teal wavy lines, symbolizing approval or verification.
Symbol indicates verified U-factor rating in accordance with the DASMA Thermal Performance Verification Program.

Warranty

  • 7560 (160) series: Limited lifetime warranty on door.
  • 7520 (370) series: 20 Year limited warranty on door.

Residential Garage Door and Opener System Limited Warranty (when purchased together) – features 3 years on components (see warranty for details)
